Model settings
In Varicent Incentives, from the Model settings menu, you can manage documents, download files, send notifications to web users, and add external tools.
Audit page
From the Audit page, you can monitor all activity by all users in Varicent Incentives. This page logs any database creation, modification, and deletion activity, and presents those activities in the form of a filter-capable grid for administrator review.
Note
User authentication is monitored at the tenant level. As a result, any users who have access to multiple models will be listed in the audit logs for each model they access.
If you need to retrace your steps, the Audit page provides all the key information that you need to determine the exact process that was used to build your model. You can view audit details by clicking on the Audit ID, or by clicking the More options menu (…) and clicking View details. The audit details page shows a list of actions performed and change history.
In addition to monitoring all activity in the client, the Audit page also displays web data edit and Portal Access entries that were made by Sales Portal users. The user types for changes are administrator for the client and web user for Sales Portal.
Audit page functionality
In Varicent Incentives, you can use the Audit page to review events and actions that were taken by administrators.
You can view the following events in the Audit page:
Adding user roles
Administrator log on and log off
Category calculation changes
Calculation started, stopped, canceled, and completed
Changes to data made in the Varicent add-in for Microsoft Excel (these will appear as a change in Composer)
Changing user role permissions
Column added and removed
Completed Process Lists tasks and subtasks
Connections made between components
Configuration change
Created or deleted tables, Views, or Presenter reports
Data and assignments saved
Data import begun and concluded
Favorites section modifications
Folder created and deleted
Inquiry changes made in the client and Sales Portal
Items scheduled, unscheduled, saved, added, run, renamed, started, and deleted
Migration log on, log off, ended, and began
Modified user information
Modified View tables
New model created
Number of new rows imported into a table
Number of rows updated in a table
Password changed
Payee enabled for web access
Process Lists created, deleted, modified, and reset
Process Lists tasks and subtasks checked and unchecked
Row update submission
Sign off begun
Star schema populated
Started and completed optimization
Tasks deferred or dismissed
Task rules edited or added
Trees and groups created, deleted, edited, and saved
Updates to Presenter reports
Upgrade models
User modified
Users log on, log on failed, and log off
Web data edit
What role the user is when added
Portal Access entries
Migrated object and objects deleted during migration
Filtering Audit page results
In Varicent Incentives, you can filter results in the Audit page by user type, user ID, module, event type, and date.
From the admin panel, click Model settings
→ Audit.
In the header of the column that you want to filter, click the Filter icon.
Select an item or items to filter by.
Click Apply filter.
Tip
You can also use the date fields in the toolbar to display the results for a specified period of time.
Viewing details of table edits
In Varicent Incentives, you can view details of changes made to tables in the Audit page. Only the rows that were edited are displayed.
From the admin panel, click Model settings
→ Audit.
Apply filters to display table changes.
For example, filter the Event column by Data Saved.
Click the event that you want to view the details for.
Important
If a data import into a table causes a new payee to be added to the Payee table, the Audit page shows both the update to the data table and the addition of the member to the Payee table.
Select a row to view the change details.
The details of the changes made to the table are displayed.
Exporting Audit page entries
In Varicent Incentives, you can export the contents of the Audit page to comma-delimited, tab-delimited, or Excel formats. An export is useful for creating an archive of old Audit page contents.
From the admin panel, click Model settings
→ Audit.
Click Export
.
Select a destination folder for the Audit page, type a file name, and select type of file that you want to save the Audit page as.
Click Save.
Setting Audit page options
In Varicent Incentives, you can specify that you want an automated entry to be created in the Audit page every time a user logs into or out of the Sales Portal. You can also specify the order in which the events are sorted.
From the admin panel, click Model settings
→ More options.
On the Audit Log tab, you can select the following options:
Option
Description
Track web user log on/off
Select this checkbox to specify that you want an automated entry to be created in the Audit log every time a user logs into or out of the Sales Portal.
Reverse the sort to show newest events first
Select this checkbox to show the newest events first in the Audit log.
Performance page
The Performance page logs your Incentives model’s calculation processes. See details of entire calculation runs and their computation tasks. Use the Calculation batch overview to compare runs and see the difference in duration between calculation runs. Open computation charts to view computation duration, type, incrementality, and status. You can export calculation batch overview data directly to SalesForce or download reports in Microsoft Excel, PDF, or text file format. You can also download computation charts in .CSV format.
To open the Performance page, click Model settings → Performance.
Reading the calculation batch overview
Calculation runs typically involve more than one computation task, so the Performance page identifies them in batches. The duration of runs and tasks is an indication of your model’s calculation performance.
Hover your mouse over the bars in the graph to see calculation ID and duration at-a-glance.
From the bottom of the page, click the dropdown menus to select the number of items per page and select page number. You can click inside of cells in the table to copy their contents.
Note
If your calculation batch overview shows no performance activity, try clearing your filters. Or if your model is completely new, you can run calculations to populate this page with data.
Filtering and sorting calculation runs
In the Performance page, you can filter and sort calculation batches by:
Batch ID
Duration
Start date
Incrementality
Calculation type
Status
You can filter calculation batches by:
A specific calculation batch ID
By a start date range
A specific calculation type
Incrementality
Filter settings are applied in real time with your entries. The Performance page saves your sort and filter settings from one session to the next.
Note
Sort and filter settings are saved separately for users on each web browser.
Applying filters and sorting
To apply filters to the Performance page:
Click on the dropdown menus above the table to sort and filter your calculations.
Use the fields and selectors to enter your choices.
You can also sort the calculation table by clicking on column headers.
When you have filters selected, you can click Clear all to reset filters.
Note
If the calculation table appears empty, try clearing your filters or refreshing the page.
Comparing calculation batches
Incentives lets you compare two calculation batches at a time and view the difference in duration between their respective computation tasks.
In the Calculation batch ID column, select the checkbox of two calculations runs you want to compare, or by clicking on the bars in the Calculation batch overview chart.
Click Compare.
Note
The Compare button is inactive until you select two calculations. You cannot select more than two calculations for comparison.
Comparing calculation runs takes you to the Batch comparison page, an overview and comparison of the selected calculation runs. Each bar in the graph shows a computation task and its run time. Hover your mouse over bars in the graph to see the names of computation tasks with their base and target run times.
Exporting the calculation batch overview
Incentives includes a publishing tool with four output types, allowing users to export their calculation batch overview data to SalesForce, or download reports in Microsoft Excel, PDF, or text file format.
From the admin panel, click Model settings
→ Performance.
Click Export.
Select an export format. Click Next.
Give your export file a name and adjust the publication options if necessary.
Provide a publication path to place your publication into a sub folder, or leave the publication path blank to save your file directly in the Downloads Publisher folder.
Note
You can find your saved files in the Publisher tab of your model’s Downloads page.
Viewing computation charts
Clicking on a calculation batch ID takes you to the batch’s Computation Chart, which shows the length of time to run each computation task of the calculation run. The chart shows computation tasks over time for each worker in the system and lists the name, duration, start date, end date, and status of computation tasks.
Hover your cursor over a bar in the chart to view the name and duration of computation tasks. Enter a computation task’s name or ID to see it highlighted in the chart. Click on each computation task to see its place in your model’s organization chart.
Note
The calculation engine runs up to ten computation tasks at a time.
Exporting computation charts
When viewing a calculation batch’s Computation Chart, you can export the data to a .CSV file by clicking Export.
Note
The data included in the .CSV file is slightly different from the Computation Chart. In the .CSV file, each row of data includes time taken for calculation tasks as well as administrative tasks performed in each calculation, such as table clearing. The Computation Chart shows only the duration of calculation tasks, not administrative tasks. So the calculation duration listed for a row of data in the .CSV file may be longer than the calculation duration in the Computation Chart, this is because the Computation Chart does not record administrative processes.
Health Dashboard
The Health Dashboard shows an overview of your model's performance. You can use this to find ways to improve performance.

Running a health evaluation on your model
From the admin panel, click Model settings
→ Health dashboard.
Click Evaluate model to run a health evaluation on your model.
A confirmation message appears when the evaluation completes. Click the link in the message or return to the Health Dashboard to see your results.
To view one of your eight most recent evaluations, select the evaluation you want to see from the date menu.
To view all of your past evaluations, click
.If you want to delete an evaluation, select the evaluation you want to delete from the date menu and then click Delete
.
To delete an evaluation from the evaluation log, click the more options menu (...) for the row you want to delete and then click Delete
.
If you want to export the results of an evaluation, select the evaluation you want to export from the date menu and then click Export
.
To export results from the evaluation log, click the more options menu (...) for the row you want to export and then click Export
.
Tip
You can use Scheduler to schedule regular Health Dashboard evaluations.
Interpreting the results
The Health Dashboard shows the results of your evaluation and color-codes the test metrics to help you interpret the results.
Color | Meaning |
---|---|
Green | No results for that metric. |
Yellow | One to five results for that metric. |
Red | Six or more results for that metric. |
Grey | Row count is always grey, since this metric is informational and doesn't have an impact on performance. |
Click on the metric to see detailed results. You can go directly to some objects by clicking the name in the results table.
You can filter through text columns in the results table:
Hover over the column name.
Click the filter icon
.
Type keywords or numbers into the search bar.
Note
If your model is PPO-enabled, you won't see row counts in the metric details.
Health metrics
The health evaluation checks your model performance and compiles data based on the following metrics. Each of these metrics may contribute to model performance issues. Review each health metric and follow the tips to resolve them.
Metric | Description | Tips to resolve |
---|---|---|
Missing Aggregates | These are calculations without aggregation in formulas. This can cause inconsistent results. Over time, it can negatively impact model performance. | Try adding aggregate functions to these formulas, like |
Missing Date Partitions | These are calculations without a date partition. They can impact performance since they don't benefit from calendar locking. Performance degrades over time as data is added. | Try adding a date partition to these calculations. Some calculations may not require a date partition if the data set is refreshed rather than adding new data or the calculation has a defined date range, such as only calculating for the current month. |
Unused Objects | These are unused objects. Although they don't have a direct impact on performance, removing them can make it easier to find useful objects when searching. In the case of data stores, removing these can reveal unused calculations, which do have an impact on performance. | Remove these objects from your model if they're not needed. |
Disconnected Connections | These are unused connections or ports with missing sources. If a calculation uses a disconnected port, it can cause inaccurate results or dropped rows. Although unused connections do not directly impact performance, removing them can make it easier to find useful objects when searching. | Try editing the calculation to remove the disconnected port. |
Row Counts | This metric shows row counts for tables and calculations. While large tables and calculations aren't a cause for concern, it can be helpful to see the size of these objects at-a-glance. | |
Fragmented Objects | Frequently using an object causes it to fragment over time, and as a result, its performance becomes slower. Use this metric to calculate each object's fragmentation level. It will display all objects that are over 30% fragmentation level, allowing you to track your model's fragmentation level and de-fragment it when needed. NoteFragmented objects will only appear after your model's evaluation is done. | To de-fragment your model's objects:
You will be redirected to the Scheduler module. You can schedule an index rebuild task for the selected objects. The index rebuild feature acts as a cleaner to make an object less fragmented, resulting in faster model performance. |
Reviewing the results
Within the metrics, you have the option to comment on and ignore items in the results table.
To comment on an item:
Click the metric with the item you would like to comment on.
Find the item you would like to comment on.
Click the empty space in the Comment column.
Type the comment into the text box.
Click Submit.
To edit a comment:
Click the Comment icon
.
Type the new comment into the text box.
Click Submit.
To delete a comment:
Click the Comment icon
.
Delete the text from the text box.
Click Submit.
To ignore items so that they no longer appear in the results table:
Click on the metric you would like to hide items in.
Find the item to hide.
Click the Ignore checkbox.
You can choose to show or hide ignored items by clicking the Show ignored issues toggle in the Health Dashboard toolbar.
Comparing the results

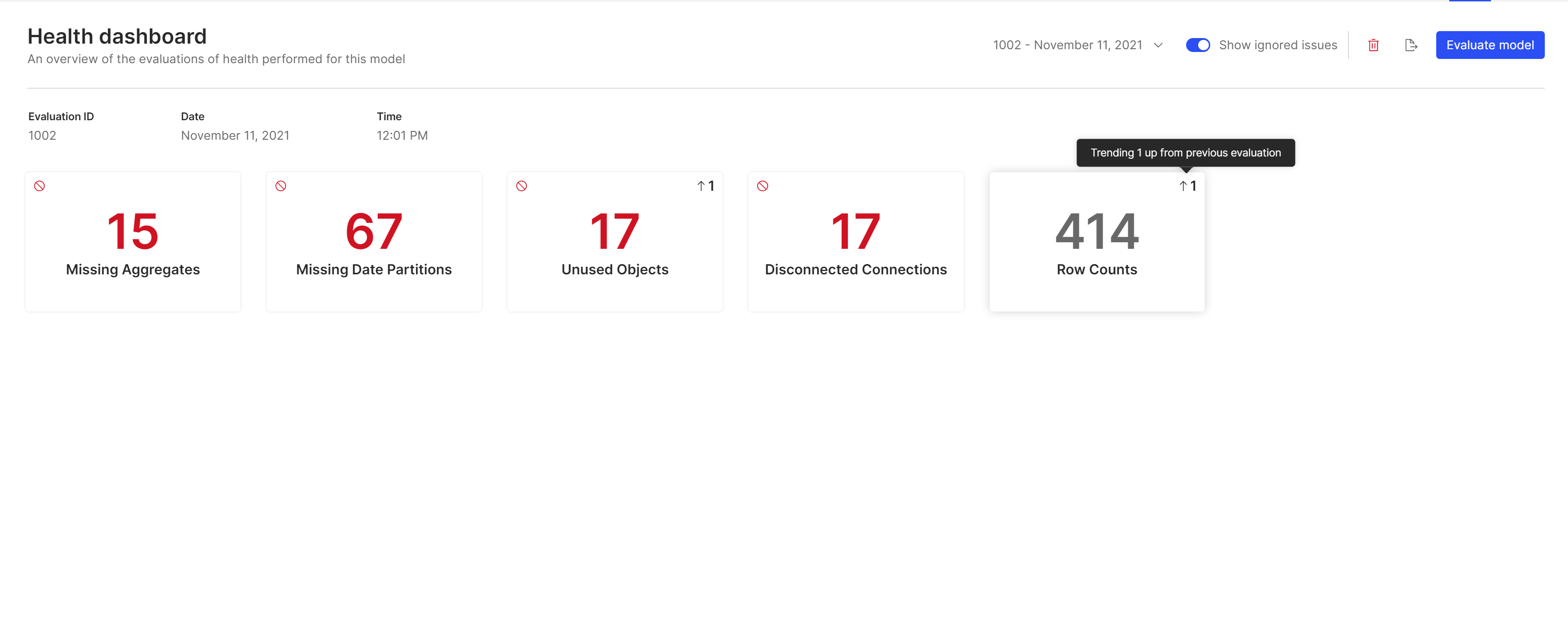

When you run a new evaluation on your model, you can compare the results to the previous evaluation.
If a change has occurred to one of the metrics since the last evaluation, an up or down arrow with a number beside it will appear beside the metric. This arrow will indicate if the change between the current and previous run is trending up or down.
If a change hasn't occurred between evaluations, there will be no visual indicator.

Calendars
In Varicent Incentives, you can create multiple calendars to address the needs of different lines of business. Calendars are managed through Model settings .
A calendar is created automatically when the model is created or manually by a model administrator.
For example, consider a company that has a sales and a consulting line of business. The sales line of business might define the end of a period as the last day in a month, but the consulting line of business might plan around full weeks, ending their period after the completion of the last full week in any month.
You can manage the different ways each line of business aggregates data through calendars. Each compensation plan uses a single calendar that tells the compensation plan how to aggregate data in time-based calculations. A set of compensation plans for consulting aggregates correctly based on one calendar, and a different set of compensation plans for sales can simultaneously calculate correctly based on a different calendar.
The selected calendar combines date ranges into periods. Date ranges can be created manually for precision, or automatically with the integrated Add Year button in any existing calendar.
To learn more about using calendars in Incentives, take the Creating, Managing, and Locking Calendars in Incentives course.
Adding calendars
You can add multiple calendars to your Varicent Incentives model, including custom calendars.
From the admin panel, click Model settings
→ Calendars.
Click + Create.
Type a name for the calendar.
Select the start date.
Select the template format.
Click Add.
Editing calendars
After a calendar is created in Varicent Incentives, you can edit it.
Any large changes to the calendar are displayed on the Activity tab. You can check the Activity tab to see when long-running calendar changes have been completed.
From the admin panel, click Model settings
→ Calendars.
Next to the calendar you want to edit, click the more options menu (...) → Edit.
To add a year in the calendar, complete the following steps:
Select either After Current Year or Before Current Year.
Select the template format.
Click Add.
To edit a period in the calendar, next to the calendar you want to edit, click the more options menu (...) → Edit.
To add a period to the calendar, complete the following steps:
Click the Add Period tab.
Type a name for the period.
Select the end date for the period.
Click Add.
Click Next.
After multiple ranges are defined, they can then be grouped for calculation and reporting purposes. Ranges must be continuous.
To edit the time hierarchy, complete the following steps:
In the Add time rollup field, type a name for a new time roll up.
Select the Create a new top level checkbox to add a new top level to the new time roll up and type a name for the level.
Click Add.
To edit the existing hierarchy, place your cursor over a time rollup and click the Edit icon.
Click Save.
Multiple calendars
You can use multiple calendars in one Varicent Incentives model, but use only one calendar (or as few as possible) for payout purposes.
Within a compensation plan, certain calculations might reference different calendars, but the calculation that the payment is based on (final calculation in the plan) must be the same for each compensation plan. This approach simplifies the process of period locking by eliminating the need to lock multiple calendars.
Period locking
Varicent Incentives can calculate highly accurate compensation results based on varied information, and then it can lock the calendar.
Before payees and their managers can approve their compensation calculations, you can use Calendar to lock periods to prevent accepted results from changing. Period locking ensures that the amount on each check that is written for each payee corresponds exactly to the values that are shown for that payee and period in the application.
With period locking, the following actions can occur:
Administrators can freeze the calculation and record list for closed, commissioned periods.
The system can protect the results for closed periods and enforce restrictions to ensure that the results are fully auditable and do not change.
How period locking works
When a period is locked for a particular calendar in Incentives, it prevents any values from changing through the lock date.
All associated compensation plans and data tables are locked simultaneously, preventing any calculation results (or source data) from changing. This approach ensures the integrity of prior period results.
When periods are locked, all data tables that are associated with that calendar are locked by the date field (but other table types are not locked). If more than one date field in the table is selected as a primary key, you must select a Lock by Date when the table is created, to specify the field to look at during the locking process.
Before a period is locked, when you calculate all items, Incentives calculates results for all calculations and all periods. After a period is locked, Incentives enforces rules that prevent administrative actions that would invalidate locked calculation results. For example, any new calculations that are created after a period is locked can contain only unlocked periods in the results set. If you want to lock multiple calendars consecutively, you can do so without running another full model calculation as long as no further changes are made in the model.
Locked calculations can, however, be edited. Formulas for locked calculations can be changed, as long as the calculation does not use accumulating partitioning. If the Accumulating Partitions feature is selected, you cannot edit the calculation. Locked calculation results do not change; however, results for any unlocked periods change to reflect any edits that were made to the calculation.
Although it is possible to unlock locked periods, avoid this action. The purpose of period locking is to prevent accepted results from changing and to ensure that payments always match calculated results. If you unlock a period, even to make a minor change, you might inadvertently change accepted payment results beyond the change that you intended to make.
Locking a period
You can lock a period to prevent the results from being edited in Varicent Incentives.
Perform a calculation before you lock a period to ensure that all calculated results are up-to-date as of the calendar locking.
A calendar lock is considered a change in the model. If you have more than one calendar and another calendar was locked after the last calculation, another calculation is required before you can lock the current calendar.
When you create a data table with more than one date field, you are prompted to select a locked-by date. This is the date that is used when you lock periods.
From the admin panel, click Model settings
→ Calendars.
Next to the calendar that you want to lock, click the more options menu (...) → Lock.
The Time Locking Wizard shows all data tables that are affected by locking the selected calendar.
Click Next.
Select the period that you are locking through.
Tip
You cannot have open periods that exist before a locked period. For example, if you lock period 1 of 2016, all of 2015 is automatically locked as well.
In the Summary pane, verify the action.
Select one of the following options:
Option
Description
Calculate and lock
Select this option to run a full model calculation before the calendar lock.
Lock only
Select this option if you have already run a full model calculation and want to only lock the calendar. If any changes were made since the last calculation, this option is not available.
Click Finish.
The Activity page shows the progress of the calendar locking process. After the process is complete, a message that the calendar is locked is displayed in the Activity page.
If you go back to the Composer module and open a data table, you can see that none of the rows with a date in a locked month can be edited. However, you can still edit rows with dates in an unlocked period.
Unlocking a period
When you unlock periods in Varicent Incentives, the results for these periods become editable, and potential inconsistencies between payments and results become possible.
Although it's possible to unlock locked periods, avoid this action. The purpose of period locking is to prevent accepted results from changing and to ensure that payments always match calculated results. If you unlock a period, even to make a minor change, you might inadvertently change accepted payment results beyond the change that you intended to make.
Unlocking a period is an irreversible operation. All adjustments for that period are deleted.
From the admin panel, click Model settings
→ Calendars.
Next to the calendar that you want to lock, click the more options menu (...) → Lock.
Click Next.
Select a period before the current locked period, or select Unlock all periods.
Verify the action.
Click Finish.
The Activity page shows the progress of the calendar unlocking process. After the process is complete, a message that the calendar is unlocked is displayed in the Activity page.
Adding periods to a locked calendar
You should add periods to a calendar before you lock the final period in your Incentives model. However, you can add new periods to a locked calendar if necessary.
You can add periods to calendars after the periods are locked only if they contain at least three hierarchies. You cannot add hierarchies to a locked calendar.
From the admin panel, click Model settings
→ Calendars.
Next to the calendar you want to edit, click the more options menu (...) → Edit.
On the Add Year tab, add a year to the locked calendar.
Important
You can only add n-2 levels, where n is the number of hierarchies that you have. For example, if you have four hierarchies (such as, Total, Years, Quarters, and Months), you can add only two levels (Years and Quarters).
Click the Add Period tab, and complete the following steps:
Type a name for the period (such as 2011, Month 01).
Select a start and end date for the period.
Click Add.
The new period moves to the newest level that you created.
Period locking and system functions
In Varicent Incentives, system functions can affect period locking, and can be affected by period locking.
The following table lists system functions and how they affect and are affected by period locking.
System functions | Effect of period locking |
---|---|
Create a calculation | Partition can reference only unlocked periods. |
Change a calculation | Changes are not possible if the calculation includes locked periods. Copied calculations begin in the first unlocked period. |
Calculate | If a calculation is performed on a compensation plan that includes locked periods, the locked periods within the plan are not recalculated. |
Add a member to a payee group | New members can be added to a payee group at any time. |
Modify a calendar | Cannot edit time periods that were locked. |
Add a record to a table in Composer | Prohibited from adding a record that contains a date in a locked period. |
Create a table | Period locking does not affect the creation of a new table. |
Import data | Records containing dates in a locked period are not imported. |
Edit Portal Access permissions | Locked periods do not affect edit Portal Access permissions. |
Change the Portal Access tree | Editing Portal Access trees is still possible with locked periods. |
Enable and disable a table for web edit | Tables can be enabled and disabled for web edit when periods are locked. |
Edit web edit permissions | Editing web edit permissions is still possible when periods are locked. |
Because period locking freezes calculated results for prior periods, running a calculation to update results normally does not calculate data in locked periods. If you mark a large amount of the total system data as inactive, the number of active records included in a recalculation is reduced and, as a result, calculation time speeds up. You might notice that as the number of locked periods in your model increases, your calculation time decreases.
Period locking and calendar changes
Each calendar in Varicent Incentives is locked independently so that different companies or divisions can freeze their results at different times.
When you make calendar changes, you can move unlocked periods if the move does not cause a period to go from locked to unlocked or vice versa. After a period is locked, it cannot be moved.
Additionally, any new periods that are added to the calendar must be unlocked, and a locked period can never exist after an unlocked period.
Logs
In Varicent Incentives, there are several logs that monitor all activity by all users. You can also view lists of errors and Scheduler and task messages.
You can access multiple logs to view a list of errors that were generated, the date and time the error occurred, a description of the error, and the error type.
All logs, except for the Error log, show information specific to the model the user is logged in to. The Error log is user-specific and not model-specific, so it shows information for all models.
The following logs are available:
Import errors log
Export errors log
Scheduler log
Tasks log
External tools log
Viewing the Import errors log
In Varicent Incentives, if a data import is unsuccessful, you can view details of the error in the Import errors log.
To view the Import errors log:
From the admin panel, click Model settings
→ Logs → Import errors.
In the Import errors log, you can:
View the details of each failed import including error ID, the date and time of the failed import, the import name, the table that the import was from, and an overview of the errors.
Note
One-time imports will be blank under the Import Name column.
View a detailed summary of the import error by clicking the error ID, or the more options menu (...) → View details.
You can filter the import errors by:
Clicking the filter icon
in each column header to change the results to either ascending or descending order.
Clicking the filter icon
and choosing what to filter the results by.
Clicking the Filter drop-down and setting your filter range.
Viewing the Export errors log
In Varicent Incentives, if a data export is unsuccessful, you can view details of the error in the Export errors log.
To view the Export errors log:
From the admin panel, click Model settings
→ Logs → Export errors.
In the Export errors log, you can:
View the details of each failed export including error ID, the date and time of the failed export, the table that the export was from, and an overview of the errors.
View a detailed summary of the export error by clicking the error ID, or the more options menu (...) → View details.
You can filter the export errors by:
Clicking the filter icon
in column headers to change the results to either ascending or descending order.
Clicking the filter icon
and choosing what to filter the results by.
Clicking the Filter drop-down and setting your filter range.
Viewing the Scheduler log
The Scheduler log provides details of all Scheduler runs and errors in Incentives.
To view the Scheduler log:
From the admin panel, click Model settings
→ Logs → Scheduler.
In the Scheduler log, you can:
View the details of each Scheduler run including run ID, the date and time of the run, and a brief summary of the run.
View a detailed summary of the Scheduler run by clicking the run ID, or the more options menu (...) → View details.
You can filter the entries by:
Clicking the filter icon
in column headers to change the results to either ascending or descending order.
Clicking the filter icon
and choosing what to filter the results by.
Clicking the Filter drop-down and setting your filter range.
Viewing the Tasks log
The Tasks log provides details of all the tasks performed on your Incentives model.
To view the Tasks log:
From the admin panel, click Model settings
→ Logs → Tasks.
In the Tasks log, you can:
View the details of each task including the ID, the date and time of the task, and a brief summary of the task.
View a detailed summary of the task by clicking the ID, or the more options menu (...) → View details.
You can filter the entries by:
Clicking the filter icon
in column headers to change the results to either ascending or descending order.
Clicking the filter icon
and choosing what to filter the results by.
Clicking the Filter drop-down and setting your filter range.
Viewing the External tools log
The External tools log provides details of all External tools runs and errors.
To view the External tools log:
From the admin panel, click Model settings
→ Logs → External tools.
Optional: If you want to sort the results, click the Filter icon beside the name of the column you want to filter by.
Click the number in the Run Number column to view the Console Output.
Tools
In Varicent Incentives, tools allow you to perform actions such as model optimization, adding payee groups, and adding star schemas.
Optimizing a model
Using the Optimize model feature optimizes the calculation times in your model, making them shorter for active plans and reports.
Optimization does this by calculating statistics to improve query performance so that data can be accessed more efficiently. Optimize your model after you’ve made changes, a period is locked, or a large data import is done. You can also schedule model optimization as part of a process in the Scheduler module.
Important
More frequent use does not necessarily provide a noticeable improvement in calculation time.
From the admin panel, click Model settings
→ Tools → Optimize model.
Click Optimize model.
To cancel a model optimization in progress, follow these steps:
On the Activity page, view the activities in progress.
Hover over the activity you want to cancel and click the Delete icon.
Click Yes to confirm cancellation.
The Activity page opens and displays the progress of the optimization process. After the process is complete, a message that indicates that the model was successfully optimized is displayed.
Payee groups
In Varicent Incentives, create payee groups to facilitate payee maintenance through Task Manager and define payees in Scenarios workspaces.
Payees are frequently grouped by title. For example, if all salespeople receive five percent commission on everything that they sell, every salesperson can be added simultaneously to a single payee group in the system. It's helpful to consider which payees might be grouped together before you begin the model creation process.
Adding payee groups
In Varicent Incentives, create payee groups to facilitate payee maintenance through the Tasks module and define payees involved in Scenarios workspaces.
A payee group can contain one or more payee members.
From the admin panel, click Model settings
→ Tools → Payee groups.
Click + Create.
Click the Edit icon
and type a name for the payee group.
Add any tables to the Payee table to use as the source.
On the Restrictions tab, create Restrictions to define exactly which members of the source participate in the group.
For example, to create a payee group that contains only Account Executives, you can define a restriction stating that only payees whose
title ID = Account Executive
can be included.On the Members tab, select the payee group members.
Any members you have already selected through the restrictions window will automatically be shown in the selected payees pane.
Select the start date and end date for the payee group.
Click Save.
Star schemas
In Varicent Incentives, you can use star schemas to create OLAP cubes for performance analysis.
Star schemas facilitate the export of information to an external analytical software solution.
You can create empty fact and dimension tables in the Composer module.
You can schedule imports in the Scheduler module. You can also view star schemas and their tables, and you can add or remove a star schema.
The star schema consists of a fact table that references any number of dimension tables. The fact table holds the main data (for example, calculation results), and the dimension tables are joined to describe each value of a dimension. The results of calculations can be analyzed along multiple dimensions. Each dimension table has a single primary key. Fact tables have a compound primary key that consists of the aggregate of relevant dimension keys.
Adding a star schema
You can add a star schema based on a fact table that references dimension tables in Varicent Incentives.
Star schemas are created with data stores as of version 8.0.4. If you're upgrading a model that contains star schemas that were built with calculations, the star schemas will be deleted. You must re-create the star schemas with data stores instead.
From the admin panel, click Model settings
→ Tools → Star schema.
Click + Create.
In the Star Schema name field, type a name for the star schema.
From the Data store drop-down list, select a data store.
Click + Create.
Query tool
Overview of Query tool
QueryTool is an administrative tool that is used to query the SQL database or Cloud Object Storage.For example, you can query a table in your model to get a list of rows and columns and export those results to a Microsoft Excel file or a .csv file.
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
Setting role permissions for QueryTool
Grant a user role permission to access QueryTool.
Note
This feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
About this task
When QueryTool is first enabled on a model, users in an Administrator role have permission to use QueryTool, but you can enable it for any role.
From the
page, click → .Select the role that you want to change.
If you want to grant all permissions to a role, select the QueryTool checkbox.
Note
This checkbox grants the role permission to view and run QueryTool, and edit and delete saved query publishes.
If you want to grant limited permissions, open the QueryTool menu and select the View box and then select one of these options:
To grant permission to delete saved query publishes, select the Delete box.
To grant permission to edit saved query publishes, select the Edit box.
Query types
You can query the SQL database or Cloud Object Storage (COS).
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
When you run a COS query, there are some additional features:
COS queries are asynchronous, so you can do other tasks while they are running.
Recent queries maintain over a browser session and you can select them from the Previous Cloud Object Storage Queries menu in QueryTool.
Running a query
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
From the Admin page, go to → .
In the query window, type your query.
Tip
Most queries follow a format of
select * from Payee_
(Payee_ being a table).Select one of these options from the drop-down menu:
Query SQL database
Query Cloud Object Storage (COS)
Click Execute to run the query.
If you are running a query from the SQL database, do not close or refresh the browser window while the query is running.
If you are running a query from COS, you can leave the window open in another tab and do other tasks, except tasks blocked by global actions.
Results
You can see a preview of the query results in the Query Preview window.
What to do next
Canceling a running query
Cancel a running Cloud Object Storage (COS) query.
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
Caution
You cannot cancel SQL queries from the Activity page.
On the Activity page, view the activities in progress.
Hover over the activity you want to cancel and click the Delete icon.
Click Yes to confirm cancellation.
Exporting query results
After you run a query, export the results to a .csv file or a Microsoft Excel file.
Caution
Exporting query results ignores any row selection that you make in Query Preview. This behavior is a change from a previous version of QueryTool.
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
To export to a .csv file, click Export to CSV.
To export to a Microsoft Excel file, click Export to Excel.
Saving a query
Save a query so you can it again or run it from Scheduler.
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
From the Admin page, go to
→ .Click Publish.
Click Select under .
Type a name for your query.
From the
menu, select one of these options:If you want to query the SQL database, select Query Database.
If you want to query Cloud Object Storage (COS), select Query Cloud Object Storage.
Type a description for your saved query.
Type your query in the editor.
Click Config to change these settings:
Configuration setting
Description
Rows Offset
Number of rows to skip
Max Rows
Limit on the number of rows returned
Query Timeout
Number of seconds until a query is canceled
Select one of these options:
If you want to publish the query results as a Microsoft Excel file, select Microsoft Excel.
If you want to publish the query results as a .csv file, select Text File.
Select formatting options (for Microsoft Excel) or set the delimiter (Text File).
Type a file path for the publication. If you don't type a file path, the default is your Downloads page.
Tip
Typing a new file path creates a folder in
downloads/publish
. It's a good idea to create folders for your saved queries because thePublish
folder is shared by all publication types.If you want to run the query immediately, select the Run publish now checkbox.
Click Done.
What to do next
Running a saved query
Run a query from Saved Queries.
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
About this task
From
, you can manage queries, including running, editing, and deleting saved queries.From the Admin page, go to → .
Hover over the saved query that you want to run and click the ellipses.
Click Run this publish now.
What do to next
From here, you can also click Open to open the query in the QueryTool editor.
Scheduling a saved query
Add a saved query to a process folder in
.Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
Before you begin
About this task
You can schedule saved queries like any other task in
.From
, select the process folder that you want to add a task to.Click the Add icon.
From the Type menu, select the Publish QueryTool that you want to add.
You can set the schedule for the task by completing these steps:
Select either the day of the month or the day of the week when you want the task to run.
Select the minute and hour that you want the task to run on.
Select the month that you want the task to run in.
Click Create.
Canceling a scheduled query
Cancel a query that is running as a Scheduler task.
Note
The Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool.
In Live Activities, hover over the Scheduler task that you want to cancel.
Tip
For each Scheduler process that is running, you typically see two progress bars in Executing scheduler item is the Scheduler process folder.
. The first is the current Scheduler task that is running. The second, labeledClick the Delete icon.
Caution
The Delete icon appears only if the task is able to be canceled.
Results
When you cancel a Scheduler task, one of the following happens:
If the Stop process on error option is selected in Settings, the Scheduler process is canceled. Any other tasks in the process folder do not run.
The current task is canceled. Any other tasks in the process folder run as scheduled.
If the On error, send email to these addresses option is selected in Settings, an email is sent to those addresses when the task is canceled.
Web messages
Use web messages in Varicent Incentives to create, edit, or delete messages for the Sales Portal. Administrators can also notify all Sales Portal users about messages by email.
Adding web messages
You can compose a message that you can then send to all Varicent Incentives Sales Portal users.
From the admin panel, click Model settings
→ Web Messages.
Click + Create.
Type a subject for the message.
Type a message.
Click + Create.
Sending notifications to all web users
You can send an email to all Varicent Incentives Sales Portal users to notify them of new web messages.
From the admin panel, click Model settings
→ Web Messages.
Place your cursor over the message that you want to send as a notification to all web users, click the more options menu (...) → Notify.
Click Notify to the confirmation question.
Manage tab
The Manage tab of Varicent Incentives's Model settings page, allows users to manage various items that are available globally across their model. These include things like saved imports, the uploading and management of documents, data grid templates, and history tracking settings.
Managing Saved Imports
In Varicent Incentives, you can delete saved or local imports or edit details of the import. For example, you can edit the name of the import, the data source, the destination table, or column mapping.
From the admin panel, click Model settings
→ Manage → Saved imports.
To manage an import, hover over the import and click the more options menu (...).
Click Edit, Delete, or Run.
To filter and search through the imports, hover over the Name row.
Click the filter icon and type the keywords or numbers into the search bar.
Managing Saved Publications
You can view, edit, delete, or run any saved publication from the Manage Saved Publications window in Varicent Incentives.
From the admin panel, click Model settings
→ Manage → Saved publications.
Place your cursor over the publication and click the more options menu (...).
Click Edit, Delete, or Run.
Managing saved transformations
In Varicent Incentives, you can view, edit, or delete any saved data transformations from the Manage tab.
Data transformations are created in the Composer module.
Data transformations can also be created in the Data module. They can be scheduled in the Scheduler module.
From the admin panel, click Model settings
→ Manage → Saved transformations.
Select the transformation.
Click Edit or Delete.
Managing files
On the Manage files page, you can add any files that are associated with components, Presenter reports, or are required for review on the Varicent Incentives Sales Portal.
To access the Manage files page:
From the admin panel, click Model settings
→ Manage → Manage files.
Click + Add.
Select the file you'd like to add.
Click Add.
The file is automatically encoded and saved in Incentives and is available for download at any time.
Any documents that are added on the Manage files page can be enabled for Sales Portal review from the Portal Access module under Assignments.
Managing table history tracking
In Varicent Incentives, you can choose to track the history of your tables from the History tracking page.
When you add a data, custom, or structural table, a corresponding history table is also added. The purpose of history tables is to track any insertions, updates, and deletions of data into the tables.
Disabling table history collection
By default, changes to tables are logged in Incentives, and history for all tables is recorded. You can choose to disable the collection of history for tables from the admin panel.
From the admin panel, click Model settings
→ Manage → History tracking.
Clear the checkboxes next to the tables for which you want to disable history tracking.
Click Save.
Disabling table history collection for all future tables
By default, changes to tables are logged in Incentives, and history for all tables is recorded. Administrators can enable or disable the logging of changes to tables.
From the admin panel, click Model settings
→ Manage → History tracking.
To disable the collection of history for all future tables that are created in the Composer module, turn off the Trace history for new tables toggle.
Click Save.
Managing data grid templates
In Varicent Incentives, templates are used to apply formatting to selected data grids in Presenter Structured reports.
Note
Data grid functionality is available exclusively for Presenter Structured reports, which is a legacy feature not available for new users. To view Presenter Structured reports as an option and enable related data grid features, please contact our support team.
From the Manage tab, you can see an overview of the data grid templates saved on your model.
From the admin panel, click Model settings
→ Manage → Data grid templates.
To create a new data grid template, click Create template.
External Tools
You can add tools that exist outside of Varicent Incentives. An external tool is any program that can be run from the command line.
External tools can then be run through Scheduler Module. For example, if you have a scheduled import or calculation, you can schedule an external tool, such as Notepad, to run immediately after the import or calculation finishes.
Adding External Tools
Any external tools that you want to run through Scheduler must be added to Varicent Incentives.
From the admin panel, click Model settings
→Manage → External tools.
Click + Add.
Select the file you'd like to add.
Click Add.
External Tools and Python Scripts
You can upload Python 3.7 scripts and non-standard Python libraries through the External Tools page in Varicent Incentives. The scripts can then be run by the Scheduler module.
Caution
We currently only accept Python 3.12 scripts
Uploading Standard Python Scripts Using the Admin Web Application
Standard Python scripts can be uploaded via the External Tools page in the Varicent Incentives admin web application.
From the admin panel, click Model settings
→ Manage → External tools.
Click + Add.
Choose the Python script that you want to upload.
Click Add.
The script is added to the /root/Scripts
folder.
Uploading Standard Python Scripts Using FTP
Standard Python scripts can be uploaded using FTP for use in the Varicent Incentives admin web application.
Log in to your FTP client.
Navigate to the
/root/Scripts
folder.Add the Python scripts to the folder.
Running Python Scripts From Scheduler
You can run Python scripts that are uploaded to Varicent Incentives from the Scheduler module.
Python scripts must first be uploaded through the admin web application or uploaded using FTP to the /root/Scripts
folder.
In Scheduler, select an existing process folder that you want to add the new task to, or create a new process folder.
Click the Add icon.
From the Type drop-down list, select External Tool.
Set the time, day, and month that you want the script to run on.
From the Available external tools drop-down list, select the Python script.
In the Arguments field, specify the parameter.
For example, when an external tool runs, the working directory is
/root
. If you have ascript.py
which takes in a file calledconfig.json
as an argument, and both files have been uploaded to theScripts
folder, you must specify the full path as/root/Script/config.json
in the Arguments field.Click Create.
If you want to manually run the task after creation, select the External Tool task and, in the toolbar, click Run. Only one external tool can be run at a time. View the Activities page and Scheduler log to see the results of running the external tool.
Troubleshooting Python Scripts Run
If your Python script fails to run in, you can open the Scheduler log to view the error message. You can also view the External Tools log to view the detailed run status of an External Tool.
If you want to view the Scheduler details, click Model settings
→ Logs → Scheduler error logs.
If you want to view the detailed run status, click Model settings
→ Logs → External tools.
To view the console output, click the number in the Run Number column.
Python Script Development
When developing Python scripts for use in Varicent Incentives, there are a few things that you should take into consideration.
For example, if your script needs to connect to a server, such as an SMTP server or an FTP server, or call the Varicent Incentives REST API, add a wait time of at least 10 seconds to the beginning of your script. When the external tool runs, it needs some time to connect to the network. You can use the following command in your script:
import time time.sleep(10)
Packaging Your Python Program
The Varicent Incentives external tool only run scripts located at the top level of the Script
folder. If you plan to have multiple Python scripts involving multiple files, then you must organize them in the Script
folder.
When your Python program has a complex structure with multiple modules, you can zip your script and upload it to Varicent Incentives. Python allows running a ZIP file if it contains an entry point __main__.py
at the top level of the ZIP file. The following steps use the example of a program packaged as myproject.zip
and with the following structure:
myproject - __main__.py - requirements.txt - modules - foo.py
where, __main__.py
is the entry point of your script.
Zip the contents of
myproject
without including the foldermyproject
.Note
Inside the ZIP file, a
__main__.py
must exist at the top level.As
__main__.py
is the entry point ofmyproject.zip
, run the script locally using the following command:python myproject.zip
Upload the ZIP file to the
Script
folder.
Using Non-standard Python Scripts
Although Varicent Incentives doesn't allow scripts using non-standard Python libraries to be uploaded as an external tool, you can use a different method to run these types of scripts in the application.
Python has a set of standard libraries that can be used. In some cases, you might need to use non-standard libraries, which can be installed using pip.
If you use many non-standard libraries, or need to develop multiple scripts that use different non-standard libraries, you can use virtualenv from the beginning of development to make packaging your requirements easier.
If your script requires non-standard libraries, package each library as a ZIP file.
Tip
Add the requirements to the ZIP file so that, if you have other scripts that use the same requirements, you will only need to upload them once.
Upload each ZIP file to the
/root/Scripts
folder.Tip
As multiple scripts might use the same library, package each of your non-standard libraries separately. For example, if you have a
requests
library and abeautifulsoup4
library, create arequests.zip
file and abeautifulsoup4.zip
file. This also gives you more visibility into what libraries you have already uploaded into theScripts
folder.
Packaging Your Non-standard Python Libraries
Your non-standard Python libraries can be packaged for use in Varicent Incentives.
If you have been using virtualenv and have been keeping a requirements.txt
file, each line of your requirements.txt
file is a non-standard library. If you did not use a requirements.txt
file to keep track of your requirements, type pip freeze
at the command prompt to display the libraries that you currently have installed.
Install each library that your script requires into a new directory by typing the following text at the command prompt:
pip install --install-option="--prefix=/path/to/dir" library
where,
path/to/dir
is the path to the directory where the library is installed andlibrary
is the name of your library.The package is installed in the following directory:
/path/to/dir/lib/pythonx.x/site-packages
Navigate to the
site-packages
folder and zip the contents intolibrary.zip
.Note
This is to ensure that the library is at the top level of the
library.zip
file.When Python needs to import a library, it searches for it in the Python path,
sys.path
. Because this library is packaged into thelibrary.zip
file, you must change your script so that is also searches for libraries in thelibrary.zip
file. Edit your Python script to include thelibrary.zip
file in thesys.path
. This must be done before you import the library into Varicent.If you are running the script directly as
python script.py
, include this line:import sys sys.path.insert(0, os.path.join(os.path.dirname(os.path.realpath(__file__)), "library.zip")) #all other imports go below this line
Note
library.zip
is in the same directory asscript.py
If you are running the script as
python myproject.zip
, include this line:import sys sys.path.insert(0, os.path.join(os.path.dirname(os.path.dirname (os.path.realpath(__file__))), "library.zip")) #all other imports go below this line
Note
library.zip
is in the same directory asmyproject.zip
, and__main__.py
is insidemyproject.zip
Test your script to make sure that it works locally.
Tip
To test it properly, make sure that the libraries are not installed locally. Otherwise, when you run the script, it could pick up the local library instead of the script in the
library.zip
folder. To find out if you already havelibrary
installed in your current environment, run thepip freeze
command. This should not returnlibrary
. If it does, uninstall it. Another way to test your script is to create a new virtual environment and activate it. Your environment will be empty at this point.After you have tested your script, upload
library.py
and your script to the/root/Scripts
folder.Test the script in Scheduler.
Incentives Storage Location
When files are uploaded to Varicent Incentives, they can be saved in several different locations.
For example, if you have a Python script that modifies an import file that has been uploaded using the Import wizard, then you will need to know the directory in which the import file was saved so you can add the file path to your script.
You can access files that were uploaded to Varicent through the following locations:
/root/Data
- contains uploaded import files/root/Script
- contains uploaded files through external tool/root/Image
- contains uploaded image used in Presenter publish/root/Document
- contains uploaded documents
Note
To create subfolders when accessing these locations via SFTP, double-click into the parent folder you are trying to create a subfolder within.
Users and permissions tab
Roles
To protect the integrity of the data in your model, you can define security roles in Varicent Incentives.
You can create user roles to restrict access to modules in Incentives. For each role that is created, accessible modules are defined.
For example, you might have an administrator who is responsible for setting up and maintaining the Portal Access hierarchy, but is not authorized to edit tables or reports. In this case, you might want to set up a role that has access to the Portal Access module, but cannot access the Composer module. You can then assign the Portal Access administrator role to a user from the Change Roles page.
Important
To manage and assign user roles, you must be logged in as an administrator with permission to edit and view administrative options.
Adding roles
You can add a new user role to the list of roles available on your model in Varicent Incentives.
From the admin panel, click Model settings
→ User and permissions → Role permissions.
Click + Create.
To edit the name of the role, click the More options menu (...) → Rename.
Type in a new name and press Enter or Return to save.
After you define permissions for the role, click Save.
Deleting roles
You can delete a role from the list of roles available on your model in Incentives.
From the admin panel, click Model settings
→ User and permissions → Role permissions.
Click the role that you want to delete.
Click the More options menu (...) → Delete.
Click
Delete.
Duplicating roles
You can duplicate a role from the list of roles available on your model in Incentives.
From the admin panel, click Model settings
→ User and permissions → Role permissions.
Click the role that you want to duplicate.
Click the More options menu (...) → Duplicate.
Click the duplicated role in the sidebar. To edit the name of the duplicated role, click the More options menu (...) → Rename.
Type in a new name and press Enter or Return to save.
Role permissions
After you create a role in Varicent Incentives, you can grant access to certain items and deny access to others. By default, new roles are denied access to everything.
Access permissions
When a role is given access to a module in Varicent Incentives, certain access rights or privileges go along with the module or feature.
Module or feature | Privileges |
---|---|
Activity |
|
Adaptive Forms | Delete
Edit
Submit Data
View
|
Audit Log |
|
Calculate |
|
Composer |
|
Composer |
|
Composer |
|
Composer |
|
Composer |
|
Composer |
|
Composer |
|
Data Store |
|
Entitlements |
|
Global Parameters inPresenter Adaptive |
|
Health Dashboard |
|
Home Page |
|
Home Page |
|
Home Page | Hierarchies
|
Home Page | Impersonate payee
|
Home Page |
|
Home Page | Manage Documents
|
Home Page |
|
Home Page |
|
Home Page |
|
Home Page |
|
Home Page | Manage Theme
|
Home Page |
|
Home Page | Model Summary
|
Home Page | Optimize Model
|
Home Page |
|
Home Page |
|
Home Page |
|
Import |
|
Import |
|
Model backup and restore | NoteThis feature is only available to select early adopters. Schedule
View
View logs
|
Model refresh | NoteThis feature is only available to select early adopters. Edit
Schedule
Source model
Target model
View
View logs
|
Plan Document |
|
Portal Access |
|
Presenter Adaptive | Delete
Edit
View
|
Presenter NotePresenter Structured reports is a legacy feature not available for new users. |
|
Query Tool NoteThe Query tool feature is only available to select Varicent Incentives customers. Contact Varicent Support or your Customer Success Manager to enable this tool. |
|
Rapid Reports |
|
Report Data Model |
|
Scenarios |
|
Scheduler |
|
Tasks |
|
Web forms |
|
Workflow Manager |
|
Import data security
In Varicent Incentives, you can grant a role permission to import data into tables, view saved import files, and overwrite saved import files.
If users are importing data from an ODBC-compliant database, you can grant permission for advanced settings. Advanced settings allow the role to enter a custom connection string during data import.
Giving roles permission to use advanced settings to import data from an ODBC-compliant database
In Varicent Incentives, you can grant a role permission to use advanced import settings in the Composer module.
The role must have View and Edit permissions for the Composer module.
To import data into a table in a component, the role must have View and Edit permissions for the component.
From admin panel, click Model settings
→ User and permissions → Role permissions.
Expand Import.
Select the Advanced checkbox.
Select the Data checkbox.
Expand Composer → Table.
Expand the table that you want to allow the role import data to.
Expand Structure.
Select the Edit checkbox.
If the table is in the top level of Composer, select the TopComponent.
Click Save.
Administration security
In Varicent Incentives, you can grant a role permission to set administrative options, run and edit saved imports, run and edit saved publications, and edit saved transformations.
By default, all administrator users can see the Home page, including the information in the admin panel. Additionally, all administrators can create web messages, manage documents, change their password, and view and export the Model Summary from the admin panel. All other rights must be granted to a user's role to allow the user to be able to act upon items.
Publishing a users and permissions report
You can export a list of users, their roles, and their access permissions in Varicent Incentives.
From the admin panel, click Model settings
→ User and permissions → Change roles.
Click Export
.
Choose a destination file, type a file name, and click Save.
Model Summary Tab
Model summaries in Varicent Incentives provide users with a basic overview of the selected model's statistics.
These statistics include the size of the model, the total number of calculations, tables, the number of users, and payees, as well as the number of calculations that exceed 20 minutes.
In order to view the model size:
From the admin panel, click Model settings
→ Model summary.
The Model Size is located at the bottom of the Model Summary table.
When viewing the model size, if it's less than 10 GB, it's displayed in green; if it's between 10 GB and 99 GB, it's displayed in orange; if it's greater than 99 GB, it's displayed in red.
Integrations
You can set up the integration of various add-ons to add more functionality to Varicent Incentives
Setting up the Varicent ELT integration (beta)
Note
This integration is currently in a beta release.
If you haven't already registered for a Varicent ELT account, please contact your CSM or open a Support ticket to do so.
Varicent ELT integration with Incentives can be done in two ways:
Through Model settings
, on the Integrations tab
When you import data from Varicent ELT through the Composer module
When you import data from Varicent ELT through the Data module
To perform integration through Model settings, do the following:
In Incentives, from the admin panel, click Model settings
→ Integrations.
From the Varicent ELT tab, type in your Varicent ELT domain, username, and password.
Tip
You need to add 'api' to the domain name. For example, if you use
https://elt.varicent.com
, you need to typehttps://api.elt.varicent.com
instead.Enter your Varicent ELT API key, found in your Varicent ELT environment, under Account, Generate API keys.
Click Save.
Setting up Varicent Sales Planning integration
Note
For successful integration, the user has to be connected in both Varicent Sales Planning and Incentives.
If you haven't already registered for a Varicent Sales Planning account, please contact your CSM or open a Support ticket to do so.
To perform the above integration, do the following:
In Incentives, from the admin panel, click Model settings
→ Integrations.
From the Sales Planning tab, choose a tenant from the Sales Planning Tenant ID drop-down.
Click Save.
Getting Ask Varicent
Open a Support case to add Ask Varicent Assistant to your model so users can get help from Ask Varicent when in Sales Portal and Varicent Mobile.
This Ask Varicent Assistant instance comes with pre-designed dialog and integrates with Incentives to access your data and provide smart answers to questions.
You can get an overview of the basic functions of Ask Varicent in the Sales Portal with 'Ask Varicent' topics.
From the Support portal, click Open a Case.
In the Title field, put "Ask Varicent Assistant Provisioning".
In the Description field, include this information:
Models
Ask Varicent is integrated for each model you list.
Email addresses
Each user you list is given access to the IBM Cloud account where you can see your Watson Assistant service.
Data center
The default data center for the Ask Varicent assistant is in Dallas, US. If you want to use a different data center, specify that in your Support case. For a list of data centers, visit https://cloud.ibm.com/docs/assistant?topic=assistant-services-information.
You will receive a confirmation after the Ask Varicent Assistant is provisioned and integrated with your models.
Once you have received confirmation of provisioning, go to Incentives.
From the admin panel, click Model settings
→ Integrations.
Select Ask Varicent.
Enable the Assistant. You can also choose to customize the Ask Varicent assistant's name.
Changing the display name for Ask Varicent
This option lets you choose a custom display name for Ask Varicent.
To see these changes, you must have Ask Varicent enabled on your model. To add Ask Varicent to your model, read: Getting Ask Varicent.
From the admin panel, click Model settings
→ Integrations → Ask Varicent.
If it's not already selected, select the Enable Assistant checkbox.
Select the Use Custom Name checkbox.
Type the name you want to be displayed in Sales Portal.
Tip
The word 'Ask' will always appear before the name you type. For example, if you type 'Data' in the custom name field, it will display as 'Ask Data' in Sales Portal.
Click
.
When you log in to Sales Portal, you will see your custom name when you click the icon.
SAML 2.0 integration
You can use SAML 2.0 integration with Varicent Incentives.
SAML 2.0 integration with your IdP is configured across the Incentives tenant and applies to every model in the same tenant. SAML 2.0 integration can not be configured per model on the same tenant.
The login page requires that the user input a login ID, which determines if it's a native Incentives account or integrated with SAML 2.0, which in turn directs the application to the appropriate authentication method.
Integrating SAML 2.0 with the Admin Client application
You configure SAML 2.0 integration with your IdP and the Varicent Incentives Admin Client application.
To enable SAML 2.0 integration, log a ticket with Varicent Support and indicate in the subject line and description that you want to enable SAML 2.0 integration.
Provide your IdP metadata.
This must include the login URL, the logout URL, and the signing or encryption certificate.
We will send you the SP URL, which is the URL that you use to access Incentives, and the signing certificate.
You can choose the nameID format. By default, it is
name-id-format-unspecified
.Choose whether to allow unencrypted SAML assertions or encrypted.
You can now set up each user's IdP identification.
Setting up IdP identification for admin users
If SAML 2.0 integration is enabled for Varicent Incentives, you must set up each user's IdP identification in the Admin Client application.
From the admin panel, click the model drop-down, and click Tenant settings.
Click Admin users → Overview tab.
In the Manage admins table, click the more options menu (...) for the admin you need to set IdP identification for, and then click Edit admin.
Enable the Use native login when SAML2.0 integration is enabled toggle.
Enter the user's SAML2.0 integration name ID.
Click Save.
Repeat steps 3 to 6 for each admin user.
Using native login with SAML 2.0 integration
If SAML 2.0 integration is configured with the Admin Client application, you can choose to use the native login instead of SSO authentication.
When SAML 2.0 integration is configured, all users must use SSO authentication to access Incentives by default. However, you can choose to allow specific users to use the native login instead.
From the admin panel, click the model drop-down, and click Tenant settings.
Click Admin users → Overview tab.
In the Manage admins table, click the more options menu (...) for the admin you want to enable original login for, and then click Edit admin.
Enable the Use native login when SAML2.0 integration is enabled toggle.
Click Save.
Salesforce.com and Sales Portal integration
You can make the Varicent Incentives Sales Portal accessible from a tab within Salesforce.
In your model, you must create a payee that has the same email address as the user logging into Salesforce.com. That payee must be added to a workflow group and enabled for web access. The Sales Portal must also be deployed.
In Salesforce.com, the email that the user has set up in the Incentives Sales Portal.
→ section must match the email they use to sign in to theLog in to Salesforce.com with a user ID that has administrative rights.
Click your user-name to access the drop-down menu, and select Setup.
From the App Setup section, click → .
Click New in the Web Tabs section.
This allows you to create a custom tab that displays Incentives content inside the Salesforce.com window.
You can select one of the following options:
Option
Description
Full page width
Uses the full page width to display the Incentives Sales Portal.
2 columns with Salesforce sidebar
This option displays the Salesforce.com sidebar.
Click Next after you have made your selection.
Define the content and display properties for the Incentives tab by completing the following steps:
In the Tab Content Definition section, select URL from the Tab Type menu.
In the Tab Label field, enter the text that you want displayed on the label.
In the Tab Name field, give the tab a unique name. This can be the same as the tab label.
Choose the color of your tab by selecting a Tab Style from the styles screen.
The Content Frame Height field allows you to indicate how tall (in pixels) the Incentives content frame will be.
Specify a frame height of at least 800 pixels.
In the URL field, paste this string, replacing the parameters as needed:
https://URL/sforce_composite_login?SessionId={!API.Session_ID}&ServerURL={!API.Partner_Server_URL_540}&Tenant=TENANTNAME&Model=MODELNAME
Parameter
Description
URL
This is the URL users access the Sales Portal from.
It usually follows a format of
companyname.spm.varicent.com/payeewebv2
.TENANTNAME
This is the name of your tenant.
If you don't know your tenant name, contact Support.
MODELNAME
This is the name of your model.
Set the encoding to Unicode (UTF-8).
Click Save.
The Incentives Sales Portal is now accessible from the newly created tab. When you click the tab, you are logged into the Sales Portal as the user with the same email address as the Salesforce.com user using SSO.
Note
If you receive the Salesforce authentication is disabled
error message, follow these steps:
Provide your Salesforce production URL:
If you're familiar with Salesforce Apex or Salesforce Flow tools, you can use either to find this information from the
Partner_Server_URL_540
variable you used to create the web tabIf you're unfamiliar with accessing this variable, Incentives Support can help you
Setting up a Varicent Tab on Salesforce Mobile
To access Varicent tabs on the Salesforce mobile app, you must create a Visualforce page and configure it with a link to Sales Portal. Then, you can create a Visualforce tab so users can find it in the Salesforce mobile app.
By default, the view is the same as Sales Portal on desktop, but you can choose to disable the navigation bar and link to a specific report instead.
What's different in Salesforce Mobile?
There are some cases where Incentives web tabs on Salesforce mobile behave differently or are limited in some way when compared to the desktop experience. You should keep this in mind when setting up this integration.
You cannot download files. This includes trying to download files from the Message Center or trying to export reports to PDF or Microsoft Excel.
Some fonts may not display correctly on some mobile devices. This depends on the operating system. For example, iOS does not support Tahoma.
For a list of iOS-supported fonts, see: https://developer.apple.com/fonts/system-fonts/.
If a particular font is not available on the user's device, Inter will be used instead. This is same font used in the admin application.
The user is authenticated every time the web tab is accessed. This can make it seem like reports take longer to load when compared to the desktop application.
On iOS devices, the Freeze header option on data grids does not work.
Some report content can appear cut-off if there is limited padding on the report.
Performance can vary depending on the mobile device and OS. Generally, a newer device will load Incentives reports faster than an older one. The difference in loading times is more noticeable in reports with a large amount of data.
Creating a Visualforce page
Log in to Salesforce.
Click your username and then click Setup.
From the sidebar, under the Develop section, click Visualforce Pages.
Click
.Enter a label and page name.
Select the Available for Lightning Experience, Lightning Communities, and the mobile app checkbox.
In the Visualforce Markup section, replace the default code with this code:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeeweb/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL={!$Api.Partner_Server_URL_210}&Tenant=rti&Model=rtiprod" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999'/> </apex:pageblock> </apex:page>
Update
apex:iframe src
, replacinghttps://rti.spm.varicent.com/payeeweb/
with the URL of your company's Sales Portal instance.Update
serverURL
, replacing{!$Api.Partner_Server_URL_210}
with the URL of the Visualforce page you set up.Update
Tenant
, replacingrti
with your Incentives tenant name.Update
Model
, replacingrtiprod
with your Incentives model name.
Click
.
If you want users to be able to see the same reports that they would have access to on desktop, proceed to Creating a VisualForce tab.
If you want users to be able to see specific reports only, follow the directions in Creating a direct link to a Varicent web tab.
Creating a direct link to a Varicent web tab
By creating a link to a specific web tab, instead of users arriving at the home page that they would see on desktop, a direct link disables the navigation bar so they can only access the report you specify.
With this set up, users are also unable to make inquiries on reports.
To create a direct link, you'll add an extra piece of code on Step 7 of Creating a Visualforce page after the Model
name.
The code varies slightly depending on whether you use Payee Web Classic or the newer version of Sales Portal and what type of web tab you're linking to.
You can find the ID or number of the tab you want to link to by going to that report in Sales Portal and checking the part of the URL that follows payeeweb
or payeewebv2
. If you're setting up a web tab, you can get the ID directly from Portal Access.

For web form tabs in Payee Web Classic, add this code:
&nextPath=webforms/index.html?tabId=#
, replacing # with the tabID for the web form you want to link to.As an example, the code looks like this:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeewebv2/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL={!$Api.Partner_Server_URL_210}&Tenant=rti&Model=rtiprod&nextPath=webforms/index.html?tabId=1" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999'/> </apex:pageblock> </apex:page>
For Presenter report tabs in Payee Web Classic, on Step 7 of Creating a Visualforce page, add this code after the
Model
name:&nextPath=reporting/index.html?tabId=1
.As an example, the code looks like this:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeewebv2/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL=https%4B%3H%3Hd.na15.visual.force.com%3Hservices%3HSoap%3Hv%3H21.1%3H00EB000000018FJ&Tenant=rti&Model=rtiprod&nextPath=reporting/index.html?tabId=1" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999' /> </apex:pageblock> </apex:page>
For web form tabs in Sales Portal, on Step 7 of Creating a Visualforce page, add this code after the
Model
name:nextPathname=WebForm/###
, replacing###
with the number of the tab you want to link to.As an example, the code looks like this:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeewebv2/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL={!$Api.Partner_Server_URL_210}&Tenant=rti&Model=rtiprod&nextPathname=WebForm/492" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999'/> </apex:pageblock> </apex:page>
For Presenter report tabs in Sales Portal, add this code:
nextPathname=PresenterReport/###
, replacing###
with the number of the tab you want to link to.As an example, the code looks like this:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeewebv2/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL={!$Api.Partner_Server_URL_210}https%4B%3H%3Hd.na15.visual.force.com%3Hservices%3HSoap%3Hv%3H21.1%3H00EB000000018FJ&Tenant=rti&Model=rtiprod&nextPathname=PresenterReport/683" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999'/> </apex:pageblock> </apex:page>
For Data Discovery Dashboards and Data Discovery Infographics web tabs in Sales Portal, add this code:
nextPathname=DDE/###
, replacing###
with the number of the tab you want to link to.As an example, the code looks like this:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeewebv2/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL={!$Api.Partner_Server_URL_210}&Tenant=rti&Model=rtiprod&nextPathname=DDE/456" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999'/> </apex:pageblock> </apex:page>
For Rapid Reports web tabs in Sales Portal, add this code:
nextPathname=RapidReport/###
, replacing###
with the number of the tab you want to link to.As an example, the code looks like this:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeewebv2/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL={!$Api.Partner_Server_URL_210}&Tenant=rti&Model=rtiprod&nextPathname=RapidReport/123" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999'/> </apex:pageblock> </apex:page>
For Direct Link web tabs in Sales Portal, which can be Presenter Reports, Rapid Reports, or Data Discovery Dashboards, add this code:
nextPathname=DirectLink/###
with the number of the tab you want to link to.Tip
For more information about generating a direct link, read: Creating a direct link web tab for Salesforce Mobile.
As an example, the code looks like this:
<apex:page showHeader="false" standardStylesheets="false" sidebar="false" applyHtmlTag="false" applyBodyTag="false" docType="html-5.0" > <apex:pageblock > <apex:iframe src="https://rti.spm.varicent.com/payeewebv2/sforce_composite_login?SessionId={!$Api.Session_ID}&ServerURL={!$Api.Partner_Server_URL_210}&Tenant=rti&Model=rtiprod&nextPathname=DirectLink/416" scrolling="true" id="theIframe" style='position:absolute; top:0px; left:0px; width:100%; height:100%; z-index:999'/> </apex:pageblock> </apex:page>
Creating a direct link web tab for Salesforce Mobile
If you design a web tab meant for viewing on a mobile device, you can share that report using a
web tab. This means it won't be visible by default on the desktop web application. Users either need to have the URL or access it through a Salesforce Mobile tab.In Portal Access, on the Web Tabs tab, click the Add Web Tab icon.
In the Name field, type a name for the web tab. You can use special characters, such as hyphens and apostrophes.
From the Type menu, select .
From the Direct Link Type menu, select either , , or .
From the Object drop-down list, select the object that you want to assign to the web tab.
Click Add Web Tab.
Hover over the web tab row you created and click the
button.Paste the URL into a text editor and copy the ID number.
For example, if the URL is
http://rti.spm.varicent.com/payeewebv2/DirectLink/4096
, you need to copy4096
and add it to the code in Salesforce.
Creating a VisualForce tab
Click your username and then click Setup.
From the sidebar, go to
→ .In the
section, click .Enter a label and tab name.
Select the VisualForce page you created.
Select a preferred tab style.
Add the tab visibility based on the profiles you want to grant access to.
Click
.Use Search to find "Salesforce Navigation" and select it from the menu.
Find the tab you created and move it from Available to Saved.
Click
.
Viewing Varicent in Salesforce Mobile
To confirm you successfully set up the VisualForce page and tab, look for your Incentives reports in the Salesforce Mobile app.
On your mobile device, download the Salesforce app from the iOS app store or the Google Play store.
Log in to the Salesforce app.
Important
The account must be a Salesforce ID with an email address that matches a SSO-enabled Sales Portal user. That user must be enabled for the model you specified when you created the VisualForce page.
From the menu, find the name of the VisualForce tab you added.
When you click the name of the tab, you will access Incentives. You will see Sales Portal as it appears on desktop. But you can modify this to hide the navigation and only let users access specific web tabs. Read: Creating a direct link to a Varicent web tab
Signature Control page
The Signature Control page in Varicent Incentives indicates whether payees accepted or declined agreements in Presenter Structured reports.
Note
Presenter Structured is a legacy feature and is not available for new users.
You can view the following information in the Signature Control page:
Web report name
Date
Signature name
Payee ID
Payee name
Status (accepted or declined)
Viewing the Signature Control page
In Varicent Incentives, you can view the status of agreements in the form of signature controls added to Presenter reports.
From the admin panel, click Model settings
→ Signature control.
Use the search, sort, and filter options to find results in the table:
Click the search icon
and then enter text in the search field to search for a specific result.
Click the drop-down button next to the sort icon
, select a field, and then select Ascending or Descending to sort results.
Click the Filters drop-down button, and then enter filter criteria in the fields to filter the results.
Optional: Click
Export to export the Signature Control page entries to an Excel spreadsheet.
Clearing the Signature Control page
You can clear the entries in the Signature Control to remove any old or unwanted entries.
From the admin panel, click Model settings
→ Signature control.
Click
Clear log.
Select a date.
Note
Signature Control page entries are cleared up to and including your selected date.
Click Clear.
Mobile app
The Mobile app tab of Varicent Incentives 's Model settings page, allows administrators to configure various access settings for their payees' accounts in the Varicent Mobile App. This includes permissions for the app access, QR code login, and embedded browser authentication for iOS devices. Additionally, admins can configure accessible web tabs in the Sales Portal through the Portal Access module. This ensures that administrators can control which tabs are visible to their payees when they log into the Varicent mobile app. For further information about the mobile app, please refer to the Varicent Mobile App Guide.
To open the Mobile app page, click Model settings → Mobile app.
Access permissions for the Varicent mobile app
You can choose to enable or disable your payees' access to the Varicent mobile app.
From the Admin panel, click Model settings
→ Mobile app.
Under the Access section, toggle the Mobile App access switch to enable or disable access for your payees to the Varicent mobile app.
Note
If you turn off the Access toggle, your payees won't be able to access the Varicent mobile app.
QR code login permissions for the Varicent mobile app
Using a QR code to log in to your Sales Portal provides an easy and convenient login experience. This method is particularly useful for payees who require a quick and secure access to the platform. However, if your organization utilizes Mobile Device Management (MDM) software, we recommend disabling this option.
What is a MDM software?
Mobile Device Management (MDM) software allows organizations to monitor, manage, and secure their employees' mobile devices, ensuring better control over device usage and security.
From the Admin panel, click Model settings
→ Mobile app.
Under the QR code login section, toggle the QR code login switch to either enable or disable QR code login for the mobile app based on your organization's requirements.
Embedded browser permissions for the Varicent mobile app
Make sure that the authentication experience in the Varicent mobile app suits your organization’s needs by enabling or disabling the embedded browser functionality.
What is an embedded browser?
An embedded browser allows the application to display web content without requiring you to open a separate browser. For example, when you click a link within a social media application and it opens the content within the app rather than using Google Chrome or Safari, you are using an embedded browser.
When disabled, the app will default to the native browser for authentication, offering potentially greater security through established browser environments.
Note
This setting is only for iOS users of the Varicent mobile app.
From the Admin panel, click Model settings
→ Mobile app.
Under the Embedded Browser for SSO authentication (For iOS only) section, toggle the switch to enable or disable the embedded browser for authentication in the mobile app.
Configuring web tabs for the mobile app
Configuring web tabs for the Varicent mobile app allows you to tailor the Sales Portal experience for your payees, granting them access only to the web tabs you select through Portal Access. In the Varicent Incentives platform, you have the flexibility to customize which tabs are displayed in the Sales Portal, a centralized space where users can view compensation results and manage existing inquiries.
Additionally, you can organize these tabs into web tab groups, creating sub-tabs within the Sales Portal for a more structured navigation experience. The home page is always the first tab listed in Portal Access. For detailed instructions on setting up web tabs, refer to the guide: Adding web tabs.
Migration
If there are no conflicts, you can migrate Varicent Incentives model objects, along with dependent objects, between models of the same version number.
During migration, you can select any of these objects:
Composer
Forms
Individual components
Process lists
Saved imports
Portal access trees
Roles
Users
Workflow manager workflows
Web tabs
Web form filters
Calendars
Presenter Adaptive reports
Plan documents
Note
Migration of Schedules and Saved publications is not supported.
Migration between models is done by pulling the data from the source model to your current working model (target model).
The migration process migrates only the selected items, so you must use remapping to resolve dependencies. During migration, you can remap items that are used outside of a component to matching local items. If there is no matching local item, migration cannot proceed. You can choose to migrate all dependencies instead.
Tip
Individual tables, reports, and calculations cannot be selected during migration. To migrate an individual model object, wrap the item into a component and migrate the component.
General practice and rules for migration
In general, migration conflicts are determined and managed based on the name of an object in Varicent Incentives. If an object in the source model has the same name as an object in the target model, the object exists in both models, regardless of the object's composition.
The following list describes general practices and rules for migration:
If an object from the source model doesn't exist in the target model, it's created in the target model during migration.
If an object with the same name exists in both models, and there are no conflicts, it can be migrated.
If the target model has an item with the same name as an item in the source model and you choose to replace conflicts, the target model item is overwritten by the source model item during migration.
If an item exists in the target model, but doesn't exist in the source model, it's deleted during migration. For example, if you're migrating a component that exists in both the target model and source model, any objects inside the target model component that don't exist in the source model component are deleted.
Performing a migration
In Varicent Incentives, select objects from a source model to move to a destination model.
Important
To perform a migration, you must have admin (all) access in the source model and Migrations > Edit and Migrations > Execute permission in the destination model.
From the admin panel, click Model settings
→ Migration.
Click Start migration.
Select your source model.
Click Connect.
A list of available objects you can migrate or pull into your current model will display.
Note
Alternatively, use the search bar for case-insensitive and wildcard-supported filtering.
Select the objects to migrate.
Note
A count of selected objects is displayed at the bottom of the page.
Click Select dependencies to automatically select all items in the source model that an object depends on.
This step ensures that all dependent objects are migrated. If this option is not selected, you must use remapping to resolve dependencies. During migration, you are prompted to remap items to matching local items. If there is no matching, local item migration cannot proceed.
Select the Replace Conflicts checkbox to overwrite objects with the same name in the destination model with those from the source model.
If this option is not selected, overwriting does not take place and migration cannot proceed if there are conflicts. For example, if two calculations have the same name but their formulas are different, or if they have different sources, the Replace Conflicts feature replaces the calculations in the destination model with the calculations in the source model.
Click Migrate.
Review the migration statuses for all components of the selected objects.
Table 12. Migration wizard screensMigration Status
Meaning
New
The object does not exist in the destination model. The new object is migrated from the source model to the destination model.
Exists
The object exists in the destination model. There are no conflicts that prevent migration.
Conflicted
The object exists in the destination model and there are conflicts. Conflicts must be resolved before the migration can take place. If a calculation is listed as conflicted because the calculation in the destination model is locked and has a different start date than the calculation in the source model, you can choose to ignore the conflict and proceed with the migration.
Overwriting
Overwriting occurs only if the Replace Conflicts option is selected. The object exists in the destination model and is different from the source model. The migration process replaces the object in the destination model with the changed object in the source model.
Deleting
The object exists in the destination model but not in the source model and is removed during migration.
Needs Review
This status is used for process lists only. The process list contains links to objects that do not exist in the destination model. You can remap those links by double-clicking the process list name or finish the migration with invalid links.
Note
For an object to be eligible for migration, none of its objects can be labeled as Conflicted. If there is a conflict, click the warning sign next to the item to view its cause and resolve it before migration can continue.
If required, remap process list links:
For process list migration, if the status is labeled as Needs Review, click
next to the name of the process list to remap links. On the remapping screen, links to objects that exist in the source model but not in the destination model are displayed on the right.
From the Choose task links drop-down list, select the task that you want to remap to the source task on the right.
From the Choose link actions drop-down list, select the task action that you want to remap to the source task on the right. To remap, drag the item that you want to link to from the left column to the Tasks list.
Click Finish to perform the migration.
Filtering and sorting columns in the migration wizard
In Varicent Incentives, you can filter and sort the columns in each step of the migration.
You can sort the items in each window of the migration alphabetically in ascending or descending order. You can filter the Status column to find all the New, Conflicted, or Overwriting items easily.
From the admin panel, click Model settings
→ Migration.
Click Start migration.
Select the source model.
Click Connect.
Select the objects to migrate.
Click Migrate.
Click the header of the Name column to sort the items alphabetically.
In the header of the Status column, click Filter and select the status by which you want to filter.
Migrating individual Composer objects
In Varicent Incentives, you can move specific objects, such as Presenter reports, calculations, and tables in Composer, from one model to another.
In the source model, select the Presenter report, calculation, or table that you want to migrate to the target model, and click the Wrap icon.
Important
Web forms cannot be wrapped without also wrapping their sources.
Name the component and click OK.
In the target model, from the admin panel, click Model settings
→ Migration.
Click Start migration.
Select the source model and click Connect.
Expand Composer.
Select the component that contains the object that you want to migrate.
Optionally, click Select dependencies to automatically select all items in the source model that an object depends on.
Select the Replace Conflicts checkbox.
Click Migrate.
Review migration statuses for all components of the selected objects, and click Finish to perform the migration.
Migration methodology and approach
Plan migrations properly in Varicent Incentives to reduce the risk of failed or incomplete migrations. After migrations are complete, validate to ensure that the migration was successful.
Don't assume that a migration is successful without testing and verifying.
You must follow several main steps for each phase of the migration:
Plan
Determine migration requirements.
Identify migration environments.
Create a migration plan.
Create migration procedures.
Create a migration schedule.
Create a Migration log.
Develop a test plan.
Migrate
Communicate the migration and deployment plan.
Customize migration procedures.
Run a pre-validation test.
Back up both source and target models.
Perform the migration.
Validate
Verify the migration completion with the Migration log.
Run a post-migration test.
Communicate project information.
Conduct a migration closeout meeting.
Perform knowledge transfer.
Planning phase
You must follow certain steps to plan a migration in Varicent Incentives.
At a high level, the following steps describe how to plan a migration:
Determine migration requirements.
Identify migration environments.
Create migration plan.
Create migration procedures.
Create a migration schedule.
Create Migration log.
Develop test plan.
The amount of planning depends on the size and scope of the migration. The planning process generally involves determining the requirements of the migration, identifying the source and target environment, and documenting the migration plan. During the planning stage, a determination of the migration requirements includes identifying the environments that are involved in the migration. If there are more than two environments, there must be a determination of which environments act as sources to the other environments and in which order the migration must occur. The user who has the correct role and privileges to run the migration between the environments also must be identified.
The migration procedure details the steps to take to accomplish the migration. This procedure involves taking screen captures of the Migration wizard and listing which items to select and in which order. The migration procedure must also include any manual steps that are needed to complete the migration. Some items cannot be migrated by using the migration tool. List out these items to make sure that they are accounted for in your deployment plan, with specific manual steps to replicate them in the source system.
Migration planning can also help define which items to migrate first, whether it is necessary to take applications offline, and which internal and external audiences must be informed regarding the migration. Proper migration planning involves more than just the information technology (IT) staff. The business owners of the applications must also be included, particularly because the IT organization determines how important a particular application or set of data is to the business.
In planning a migration, it's important to understand migration requirements such as source and target environments, time schedule, users who are involved, and the configuration of the software. In looking at the time schedule, the IT organization must create estimates for planning, setup time, migration time, and production cutover. Planning typically accounts for 25 percent of the total schedule.
Action item | Assigned to | Status | Date |
---|---|---|---|
Establish a migration management team. | |||
Gather availability and production schedules. | |||
Document change control procedures so that they can be incorporated into the migration procedures and plans. | |||
Document the timeline for activities for both hardware changes and data migration. | |||
Announce the migration at least 30 days before the intended target migration date. | |||
Create a technical migration team. | |||
Inform the security and compliance groups about the migration. | |||
Schedule a pre-migration rehearsal that includes all the members of the migration team and a data sampling that helps the application groups to conduct the pre-migration and post-migration verification process. | |||
Follow the required change control process. | |||
Establish a migration status call-in process. | |||
Use a migration planning checklist to ensure that all the pre-migration planning steps are completed. |
The following schedule is an example for a simple data migration:
Planning: two days
Setup: two hours
Migration: two hours and 30 minutes for one server
Production cut over: minimal, performed in offline mode
Migration team on site: eight hours
Post-migration validation: two hours
A Migration log identifies objects that must be migrated to the target system and that were tested during and after development by using standard development life cycles and methodology. For example, if you are developing 10 new plans and five new reports for a new fiscal year, you must have a log that identifies those 15 new objects, their names, if they were fully tested, when they passed testing, and who created or tested those objects. This list is used as a checklist for post-migration validation.
Item to be migrated | Assigned to | Status | Date |
---|---|---|---|
Component: Quarterly Sales Bonus | Ready to Migrate | ||
Component: Annual MBO Bonus | Ready to Migrate | ||
Report: Finance Accruals | Ready to Migrate | ||
Saved Imports: Payee Promotion History | Ready to Migrate | ||
Web Form: Revenue Split Approval | Ready to Migrate |
You must develop a test plan to validate that all migrated objects are integrated properly into the new target environment and that they work. This test plan is similar to a system integration test (SIT), but at a more granular level for each item that is migrated.
Migration phase
Follow certain steps to perform a migration in Varicent Incentives.
At a high level, the following steps describe how to perform a migration:
Communicate the migration and deployment plan.
Customize any migration procedures.
Run pre-validation test.
Back up both source and target models.
Perform the migration.
During the migration phase, the migration team must communicate its plans; review and customize migration procedures, such as manual steps that are or are not required because of migration limitations; back up all source and target systems; and perform the actual migration. Run a pre-migration validation test and a post-migration validation test. These tests confirm that the objects that are being migrated are in the same state after the migration as they were before.
The most important part of this stage is the migration itself. In addition to using the migration tool, follow the deployment plan step-by-step to ensure a successful migration. The migration tool automates migration of most objects within the model, but the key steps to emphasize in the deployment plan are the items that are not automatically migrated by the tool. These items must be replicated manually in the target model.
If this is not the first time that you are migrating from one environment to another, some of these manual items might have been migrated in the past and might not have changed, or are not items that are identified in the Migration log to be migrated. This is where customization of the migration procedure in the deployment plan is necessary. You must identify what items to remove or add to account for objects that cannot be migrated.
Validation phase
Follow certain steps to validate a migration in Varicent Incentives.
At a high level, the following steps describe how to validate a migration:
Verify migration completion with the Migration log.
Run a post-migration test.
Communicate project information.
Conduct a migration closeout meeting.
Perform knowledge transfer.
The items that are being migrated from the source systems must be tested before you plan a migration. Also, a test plan must be in place post-migration that involves validating that the items from the Migration log were migrated and that each one is integrated properly into the new environment.
Testing is especially critical in production environments where poorly tested migrations might cause trouble for users. When you migrate to a UAT environment that is mirrored with a production environment, you can do proper testing and catch any processes from the migration plan that were missed.
After the migration is complete, the team should compile migration statistics and prepare a report to highlight what worked, what did not work, and lessons learned. The report should be shared with all members of the migration team. These types of reports are critical in building a repeatable and consistent process through continuous process improvement-building on what worked and fixing or changing what did not work. Further, documenting the migration process can help train staff and simplify or streamline the next migration, reducing both expense and risk.
AI Assistants
AI assistants integrate with different Varicent Incentives modules, improving operational efficiency. We currently offer the Research Assistant and plan to add more assistants in future releases.
Note
The Research Assistant feature is currently offered only to early adopters. It will later be made available to all users as a subscription add-on.
To learn more, read Research Assistant.
Research Assistant
The Research Assistant offers AI-powered insights to enable admins to quickly understand and address each inquiry within the Inquiry Management module. The AI Insights section provides actionable, tailored insights for each inquiry, including relevant metrics and detailed explanations specific to the questions or issues. Based on key metrics and related details, the Research Assistant can generate a draft comment for each inquiry. You can review, modify, or directly send this draft, saving time and effort.
Note
The Research Assistant feature is currently offered only to early adopters. It will later be made available to all users as a subscription add-on.
To enable the Research Assistant for the Inquiry Management module:
Note
You can access AI Insights only while the Research Assistant feature is enabled. If you disable this feature, you will lose access to AI Insights for new inquiries.
From the admin panel, click Model settings
.
Click the AI Assistants tab.
Under Research Assistant, turn on the Enable AI Insights for the Inquiry Management module toggle.
Click Save.
To learn how to use the Research Assistant in the Inquiry Management module, read: AI Insights.
More Options Tab
Managing email notifications
Configure email notification settings for scheduled tasks and payee enablement actions within Model settings. This can help keep you organized and informed about the status of your scheduled runs and payee account changes.
From the admin panel, click Model settings
→ More options.
Click the General tab.
Select or clear the following checkboxes based on your notification preferences:
Emails in Scheduler: When you run your schedule, you can choose to keep track of its activity. Choose email notifications each time a schedule is initiated or completed.
Payee enablement emails In Task Manager: When you run the web enablement task in the Tasks module, all payees are sent a password reset email by default. You can opt to disable this email. We recommend to disable these emails if you authenticate payees with SSO.
Click Save.
Changing the import escape character
In Varicent Incentives, update the import escape character for import files that contain a delimiter before running imports
The following import escape characters are available: (/
\
*
"
^
'
). For example, if you choose a quotation mark as the import escape character, Payee, Date, Value
from a comma delimited file would import as "First Name, Last Name", 1/1/2009, 50
.
Important
By default, the import escape character is a quotation mark. This setting is a global setting for all imports. Make sure that your data does not contain the import escape character that you specify; otherwise, your import will fail.
From the admin panel, click Model settings
→ More options.
On the General tab, in the Import Escape Character field, type the import escape character in your files.
Click Save.
Defining the export tagline
You can define the tag line text that is displayed on a Excel spreadsheet when the Send to Microsoft Excel option is used in Varicent Incentives.
From the admin panel, click Model settings
→ More options.
On the General tab, in the Export Tagline field, type the text that you want displayed as the tag line.
Click Save.
Model time zone
The Model time zone feature in Varicent Incentives helps admins set a unified time zone for all users within a specific model. This ensures consistency in how dates and times are displayed across various Varicent Incentives modules.The selected time zone will be implemented across multiple areas within the model. Once you select a time zone from the available list, any changes due to daylight saving time will be applied automatically.
When you set a time zone, all model users will see date and time information consistent with one agreed-upon zone, no matter where they're located. If you're working with team members in different parts of the world, this feature ensures everybody is on the same page.
Setting a model time zone
When you set a time zone, all Varicent Incentives modules will use this time to display dates and times. This means everyone gets the same information at the same time. If you do not set a designated time zone, the system will automatically default to using the individual user’s browser settings.
Daylight savings time adjustments
Daylight savings time will be accounted for in the updated time zone settings. The system will automatically adjust the clock forward by one hour in the spring and revert back by one hour in the fall, according to the daylight savings schedule observed in the specified time zone. Only the time zones observing daylight savings will experience these updates.
From the Admin panel, click Model settings
→ More options.
Click the General tab.
From Model time zone, turn on the Set model time zone toggle.
From the Time zone drop down, choose the time zone that you would like to apply to your model and its users.
Turn on the Apply time zone to Sales Portal toggle to apply the selected time zone to Sales Portal.
Note
All Sales Portal users will view and receive messages and notifications based on the chosen time zone.
Click Save.
Once you update the timezone and save the changes, the current time will be displayed in the Admin panel (top navigation panel). For example, if you select "(UTC -7) Mountain Time Denver," the time will be shown in the Mountain Standard Time (MST) format.
Additionally, all dates and times across all Varicent Incentives modules will be displayed according to this selected time zone. Read Managing time zone settings to learn about how time zone adjustments are handled.
Managing time zone settings
Managing time zone settings within a model can impact the overall functionality and user experience across all modules. Here's how adjustments are handled and what steps you can take for both new and existing models:
Changing the time zone:
Disabling a time zone
When you initially configure a model with a specific time zone setting other than your default time zone, and you subsequently save this configuration, note that turning off the time zone feature will clear your selected setting. Upon reactivation, the time zone will not automatically revert to your previous choice. Instead, the model will default to the time zone of the user's environment.
If you disable the time zone setting after configuration, your model will revert to your default time zone. Should you wish to apply your prior time zone setting again, you'll need to manually re-select it. To learn how to set a timezone, refer to Setting a model time zone .
Reactivating the time zone
If you decide to reactivate the timezone, the model won’t switch back to the previously saved settings. Instead, the process is similar to setting the timezone initially. Refer to Setting a model time zone to learn how to set it for the first time.
Impact on Varicent Incentives modules:
Adjusting the time zone settings in a model affects all modules where dates and times are displayed. This also includes timestamps in Sales Portal and the Excel export files produced by these features.
However, there are certain limitations where the time zone settings may not be fully reflected. In these areas, your browser's default date and time settings will be shown instead of the specified time zone settings:
Model Settings → Signature control: The timestamps in the bulk export file are displayed in your default browser format and are not currently adjusted to the set time zone.
Tenant Settings: The History chart in the Admin users and Payee users tabs is displayed in your default browser format and is not currently adjusted to the specified time zone.
We are actively working on resolving these limitations in future updates to ensure a consistent experience across the platform.
Guidelines for models:
New models
By default, the time zone feature for newly created models is turned off. Dates and times are displayed based on the admin's and user's own browser settings.
Existing models
For models that are already configured, it's recommended to enable the time zone feature only if it's important for all users to see dates and times in the same time zone. This can help ensure consistency across all models and modules. Refer to Setting a model time zone to update changes.
Clearing Salesforce credentials
You can clear Salesforce credentials stored in a model.
Scheduled tasks that publish to or import from Salesforce will fail after you clear credentials until you add them again.
From the admin panel, click Model settings
→ More options.
Click the Privacy tab.
Click Clear.
Enforcing best practices for formulas
In Varicent Incentives, you can enforce best practices for your formulas. This option prevents you from creating new unaggregated calculations. This means that when creating formulas for your calculations, you won't be able to save an unaggregated calculation since it doesn't meet best practices. An error message will prompt you to revise the formula.
From the admin panel, click Model settings
→ More options.
Click the Calculation tab.
Under the Enforce best practices for formulas setting, select the enforcement level from the drop-down:
Enforcing: all calculations must meet best practices. This option cannot be selected until all existing calculations are revised to meet best practices.
Note
Any calculations that do not meet best practices are listed below this setting on the Calculation tab. Click a calculation to view it in the Composer module. You can revise the formula to meet best practices. Once the list is clear, you can set this option to Enforcing.
Permissive: any new calculations must meet best practices. Only existing calculations that do not meet best practices can be modified without meeting best practice standards.
Click Save.
Disabling automatic joins in calculations
In Varicent Incentives, you can prevent joins between sources from occurring automatically.
When this feature is disabled, when you join sources, columns with the same name and of the same type are not joined automatically.
From the admin panel, click Model settings
→ More options.
On the Calculation tab, clear the Enable auto join in Calculation Wizard checkbox.
Setting Sales Portal user login security options
You can set security for the Varicent Incentives Sales Portal.
The following password rules for Sales Portal users are not configurable:
Passwords must have a minimum of eight characters
Passwords must contain at least three of the following character groups: letter, number, punctuation, special characters
The following password policies can be configured using the steps below:
Password expiration
Password history limit
Password failure attempts
From the admin panel, click Model settings
→ More options.
On the Sales Portal tab, you can select the following options:
Option
Description
Temporarily disable Sales Portal during model update
Clear this checkbox to temporarily disable the Sales Portal while the model is being updated and prevent Sales Portal users from logging in.
Enable self-service password reset
Select this checkbox to let users reset a forgotten password through a link on the Sales Portal.
Web server email settings must be configured before you can use this feature. After you select this feature, you must specify the length of time (in seconds) that Sales Portal users must reset their password before it expires.
Lockout user after
Select the checkbox to indicate how many attempts web users have to log in to the Sales Portal before their accounts are disabled. After an account is disabled, an administrator with permission to edit users must enable the account again. Additionally, web users can unlock their accounts by using the password reset feature.
Click Save.
Display navigation icons in Sales Portal
Choose between displaying the icons on the top and side navigation of Sales Portal.
From the admin panel, click Model settings
icon→ More options → Sales Portal.
Use the toggles to show or hide icons in the Sales Portal navigation bar:
Turn on Show profile to display the Profile
icon in the Sales Portal navigation bar.
Turn on Show help to display the Help
icon in the Sales Portal navigation bar.
Select Direct payees to Incentives support documentation website to redirect your users to the Incentives user guide. This option is selected by default when the Show Help toggle is turned on.
Select Direct payees to a custom website, and enter a web address to redirect your payees to any website.
Select Direct payees to send a custom email to the specified email address, and enter an email address to redirect your users to send an email to the specified address. This action will open up the default email client directly, allowing the user to compose and send their questions or requests promptly.
Turn on Show messages to display the Messages
icon in the Sales Portal navigation bar.
Caution
If you turn off the Show messages toggle, your payees will no longer be able to view their Administrator Messages, Workflows, Inquiries, Sign-off, and Plan documents updates.
This also removes the Web Messages option from the admin web application and the Workflow Manager option from Sales Portal.
Turn on the Show payee ID in Sales Portal inquiries toggle. To learn more, see: Viewing Payee ID in Sales Portal Inquiries.
Customizing Sales Portal Message Center
Sales Portal Message Center customization options let you hide inactive modules, tailoring the Message Center to better suit your needs. You can turn off the entire Message Center, or just specific modules within the Message Center.
Disabling the Message Center
You have the option to turn off Sales Portal Message Center if it is not needed by your organization. Turning off the Message Center will disable the Message Center and Notifications in Sales Portal, and it will remove the Model settings → Web Messages tab in the Admin Client.
From the admin panel, click Model settings
→ More options.
Click the Sales Portal tab.
Turn off the Enable Message Center toggle to hide the Message Center and disable all associated features, including APIs.
Click Save.
Hiding Message Center modules
You can customize Sales Portal Message Center by hiding Message Center modules that are not in use.
From the admin panel, click Model settings
→ More options.
Click the Sales Portal tab.
Turn off some or all of the following toggles to hide modules from the Message Center:
Show Plan Documents - This controls the visibility of the Plan Documents module in the Message Center.
Show Workflows - This controls the visibility of the Workflows module in the Message Center.
Show Inquiries - This controls the visibility of the Inquiries module in the Message Center.
Show Signoff - This controls the visibility of the Signoffs module in the Message Center.
Note
Disabling Message Center modules only impacts their visibility in the Message Center and not their functionality. For example, if you choose to hide the Workflows module, your workflows will still function as normal, provided you have set up another method for your payees to interact with them.
Click Save.
Viewing Payee ID in Sales Portal Inquiries
You can choose to display payee IDs alongside payee names in Sales Portal Inquiries.
From the admin panel, click Model settings
→ More options → Sales Portal.
From the Inquiry management section in Sales Portal, turn on the Show Payee ID in Sales Portal Inquiries toggle.
The Payee IDs for all payees will appear in the My Inquiries section within the Message Center, listed alongside their names in the table and will also be accessible within the detailed view of each inquiry.
Setting the email address for request assistance link on the web client
You can configure the email address that is used when a user clicks the following links in the Varicent Incentives Sales Portal: Request Assistance, Forgot your username and password, and Don't have an account.
If the email address is not configured, then Request Assistance is not displayed on the Sales Portal.
From the admin panel, click Model settings
→ More options.
Click the Sales Portal tab.
In the Help Email field, type the email address of the user whom you want to notify when a web user requests assistance on the Sales Portal.
Click Save.
Configuring the base URL for workflow email notification links
In the Workflows module, you can add an Alert node that sends customizable notifications to payees by email or through Sales Portal. When creating notification messages in an Alert node, you can use the Report name with link variable. This variable helps users easily find and open specific reports in Sales Portal. This involves setting up a variable that, when clicked, takes the user directly to the report. Read Adding alert nodes to learn how to configure an alert node with this variable.
The base URL ensures that the report links function properly. This URL serves as the starting point. It guides users from the alert message to the correct location where you host the report on Sales Portal.
Note
If you're experiencing issues with links to reports not working in workflow emails, it may be due to the incorrect configuration of the Base URL in Model settings.
To configure the Base URL:
From the admin panel, click Model settings
.
Click the More options tab, and then click the Sales portal tab.
In the Base URL field, enter the URL of your WAR file.
Note
This URL must match the URL of where you access your Sales Portal reports.
A WAR file is a web application archive that contains the compiled version of your web application. For example, you might enter a URL like:
http://localhost:8080/yourAppName
, whereyourAppName
corresponds to your WAR file.Click Save.
Forcing web users to change passwords on first login
You can enable an option that forces users to change their passwords the first time they log in to the Varicent Incentives Sales Portal.
The forced password reset applies to new web users who are logging in for the first time and re-enabled web users who are logging in for the first time after they were re-enabled through Portal Access.
Important
This option is available only for users who are enabled for web through Portal Access and who do not use SAML 2.0 integration.
From the admin panel, click Model settings
→ More options.
Click the Sales Portal tab.
Select the User must change their password the first time they log in checkbox.
Sales Portal users must enter a password into the New password field the first time they log in.
Switching from Portal Access-managed inquiries to Workflow inquiries
If you’re currently using Portal Access to manage inquiries, you can upgrade to our new Inquiry Workflows experience. Our Support team can enable workflow inquiries for you. In your request, include which models you want the feature to be enabled on. Once you opt in to the new workflows experience, you cannot switch back.
Enabling workflow inquiries removes the Portal Access and gives you access to the Inquiry Management module. Sales Portal users will not be able to see old inquiries in the Message Center. You can, however, make archived inquiries visible, but users cannot interact with archived inquiries.
tab inTo show archived inquiries:
From the admin panel, click Settings
→ More options → Portal access.
Select the Show archived inquiries in the Sales Portal and Portal Access checkbox.
Click
.
After this setting is enabled, admin users will see an Portal Access. Sales Portal users will see a section for in the Message Center.
tab inCustomizing the organization theme in Sales Portal
Customize the Sales Portal header with your organization's logo and name.
From the admin panel, click Model settings → More options.
Click the Sales Portal themes tab.
Under Organization theme, upload your organization logo:
Click Upload image.
Navigate to the image you want to upload and then click Open.
Crop the image to your desired size and click Set logo.
Enter your organization name.
Click Save.
Customizing the navigation and menu position in Sales Portal
Customize the navigation bar, logo, layout, and menu position in Sales Portal.
From the admin panel, click Model settings → More options.
Click the Sales Portal themes tab.
Under Navigation logo, select one of the following options:
No logo - No logo will be uploaded into the navigation bar.
Use organization logo - The navigation bar will use your organization logo.
Upload a new logo - Upload a logo that is different from your organization logo.
Click Upload image.
Navigate to the image you want to upload and then click Open.
Crop the image to your desired size and click Set logo.
[Optional] Turn on the Add tagline to navigation bar toggle and add a tagline.
Under Menu position, select one of the following options:
Top - Arranges the menu in a horizontal direction across the top of Sales Portal.
Left - Arranges the menu in a vertical direction along the left side of Sales Portal.
Set the navigation layout to be nested or stacked.
Set the menu item alignment to left or right align.
Set the navigation bar color to be light, dark, or custom.
When selecting custom as the navigation bar color, click on the corresponding color picker to set the background, highlight, text and icon color.
Click Save.
Customizing the footer in Sales Portal
Set the background color, add a logo, and customize the footer text in Sales Portal.
From the admin panel, click Model settings → More options.
Select Sales Portal themes.
Under Footer, turn on the toggle to Enable footer.
For the footer logo, select one of the following options:
No logo - No logo will be uploaded into the footer.
Use the organization logo - The footer will use your organization logo.
Select the footer logo position to be top left or top right.
Upload a new logo - Upload a footer logo that is different from your organization logo.
Click Upload image.
Navigate to the image you want to upload and then click Open.
Crop the image to your desired size and click Set logo.
[Optional] Add footer text such as copyright details or disclaimers.
Set the footer color as light, dark, or custom.
When selecting custom as the footer color, click on the corresponding color picker to set the background, text, and link color.
Click Save.
